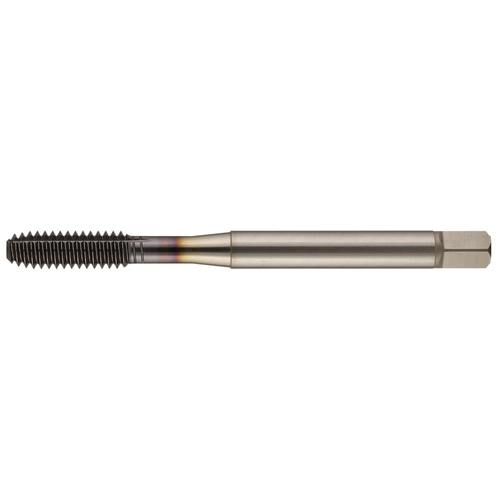

M10X1.5 TICN ZELX HP-RZ D10 BOT TAP
Item #: YM20386877
Brand: YMW Taps
Model #: 386877
| Product Specifications | |
|---|---|
| Tool Type | Forming Tap |
| Thread Standard | Metric |
| Thread Diameter Size (TDZ) | M10 |
| Application | Blind Hole |
| Thread Pitch (TP) | 1.5 mm |
| Applicable Material | Steel |
| Overall Length (OAL) | 3.937″ |
| Coating | TiCN |
| Usable Length (LU) | 1.53″ |
| Chamfer | 2P |
| Connection Diameter Machine Side (DCONMS) | 0.381″ |
| Cutting Edge Material | HSSPM |
| Thread Tolerance Class (TCTR) | D10 |
| Thread Size | M10 × 1.5 |
