NPT Boring Bar Sleeve
These New NPT Threaded Boring Bar Sleeves have a threaded back end to allow for the inducing Internal Coolant Applications. To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)

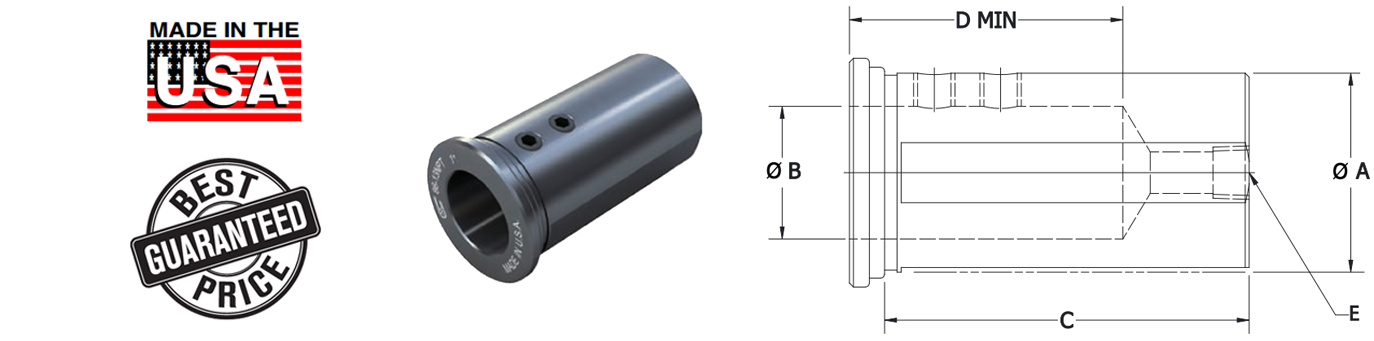

| OD | ID | Part Number | |||
| A | C | D (Min) | E | B | |
| 1" | 2-3/4" | 2-1/16" | 1/8-27 NPT | 1/4" | 86-11NPT 1/4" |
| 5/16" | 86-11NPT 5/16" | ||||
| 3/8" | 86-11NPT 3/8" | ||||
| 1/2" | 86-11NPT 1/2" | ||||
| 5/8" | 86-11NPT 5/8" | ||||
| 3/4" | 86-11NPT 3/4" | ||||
| 1-1/4" | 2-3/8" | 2-1/16" | 1/8-27 NPT | 3/8" | 86-12NPT 3/8" |
| 1/2" | 86-12NPT 1/2" | ||||
| 5/8" | 86-12NPT 5/8" | ||||
| 3/4" | 86-12NPT 3/4" | ||||
| 7/8" | 86-12NPT 7/8" | ||||
| 1" | 86-12NPT 1" | ||||
| 1-1/2" | 2-3/4" | 2-1/16" | 1/8-27 NPT | 3/8" | 86-13NPT 3/8" |
| 1/2" | 86-13NPT 1/2" | ||||
| 5/8" | 86-13NPT 5/8" | ||||
| 3/4" | 86-13NPT 3/4" | ||||
| 7/8" | 86-13NPT 7/8" | ||||
| 1" | 86-13NPT 1" | ||||
| 1-1/4" | 86-13NPT 1-1/4" | ||||
| 1-3/4" | 3" | 2-1/16" | 1/8-27 NPT | 1/2" | 86-14NPT 1/2" |
| 5/8" | 86-14NPT 5/8" | ||||
| 3/4" | 86-14NPT 3/4" | ||||
| 7/8" | 86-14NPT 7/8" | ||||
| 1" | 86-14NPT 1" | ||||
| 1-1/4" | 86-14NPT 1-1/4" | ||||
| 2" | 3-1/2" | 2-1/16" | 1/4-18 NPT | 1/2" | 86-15NPT 1/2" |
| 5/8" | 86-15NPT 5/8" | ||||
| 3/4" | 86-15NPT 3/4" | ||||
| 7/8" | 86-15NPT 7/8" | ||||
| 1" | 86-15NPT 1" | ||||
| 1-1/4" | 86-15NPT 1-1/4" | ||||
| 1-1/2" | 86-15NPT 1-1/2" | ||||
