TYPE H BORING BAR SLEEVES
SHORT LENGTH-Ideal For Solid Carbide Boring, Grooving And Threading Tools To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
SHORT LENGTH-Ideal For Solid Carbide Boring, Grooving And Threading Tools To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)

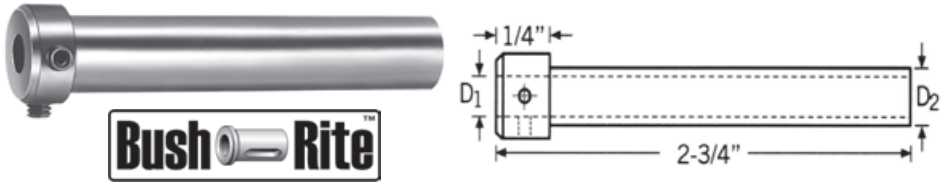

| OD D2 | OAL | Head Thick. | ID D1 | Industry Reference # | Flatted Shank Part Number |
Round Shank Part Number |
Screw Size |
| 1/2” | 2-3/4” | 1/4” | 1/8" | MI-TH84 | TBH-05-0125-FB | TBH-05-0125-B | 6-40 UNF x 1/4 |
| 3/16" | MI-TH85 | TBH-05-0187-FB | TBH-05-0187-B | ||||
| 1/4" | MI-TH86 | TBH-05-0250-FB | TBH-05-0250-B | 6-40 UNF x 3/16 | |||
| 5/16" | MI-TH87 | TBH-05-0312-FB | TBH-05-0312-B | ||||
| 3/8" | MI-TH88 | TBH-05-0375-FB | TBH-05-0375-B | 6-40 x 1/8 | |||
| 5/8” | 2-3/4” | 1/4” | 1/8" | MI-TH104 | TBH-06-0125-FB | TBH-06-0125-B | 6-40 UNF x 5/16 |
| 3/16" | MI-TH105 | TBH-06-0187-FB | TBH-06-0187-B | ||||
| 1/4" | MI-TH106 | TBH-06-0250-FB | TBH-06-0250-B | 6-40 UNF x 1/4 | |||
| 5/16" | MI-TH107 | TBH-06-0312-FB | TBH-06-0312-B | ||||
| 3/8" | MI-TH108 | TBH-06-0375-FB | TBH-06-0375-B | 6-40 x 3/16 | |||
| 3/4” | 2-3/4” | 1/4” | 1/8" | MI-TH204 | TBH-07-0125-FB | TBH-07-0125-B | 6-40 UNF x 3/8 |
| 3/16" | MI-TH205 | TBH-07-0187-FB | TBH-07-0187-B | ||||
| 1/4" | MI-TH206 | TBH-07-0250-FB | TBH-07-0250-B | 6-40 UNF x 5/16 | |||
| 5/16" | MI-TH207 | TBH-07-0312-FB | TBH-07-0312-B | ||||
| 3/8" | MI-TH208 | TBH-07-0375-FB | TBH-07-0375-B | 6-40 x 1/4 |
