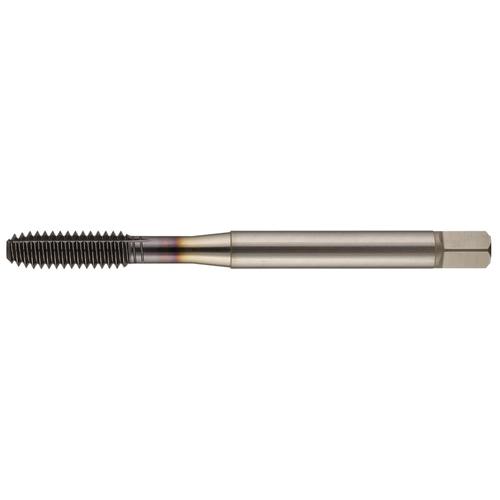

3/8-24 TICN ZELX HP-RZ H5 BOTT TAP
Item #: YM20386844
Brand: YMW Taps
Model #: 386844
| Product Specifications | |
|---|---|
| Tool Type | Forming Tap |
| Application | Blind Hole |
| Thread Diameter Size (TDZ) | 3/8″ |
| Applicable Material | Steel |
| Overall Length (OAL) | 3.937″ |
| Coating | TiCN |
| Usable Length (LU) | 1.54″ |
| Threads per Inch (TPI) | 24 |
| Connection Diameter Machine Side (DCONMS) | 0.381″ |
| Chamfer | 2P |
| Thread Tolerance Class (TCTR) | H5 |
| Cutting Edge Material | HSSPM |
| Thread Standard | UNF |
| Thread Size | 3/8″ - 24 |
