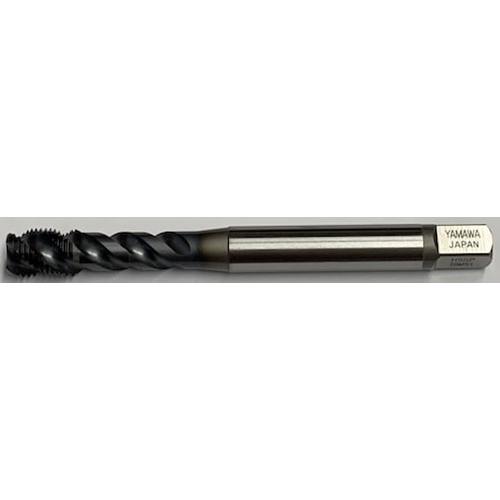

394601-VUSP D6 M 10 × 1
Item #: YM13394601
Brand: YMW Taps
Model #: 394601
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M10 |
| Cutting Edge Material | HSSPM |
| Thread Pitch (TP) | 1 mm |
| Thread Tolerance Class (TCTR) | D6 |
| Thread Standard | Metric |
| Chamfer | 2.5P |
| Overall Length (OAL) | 3.937″ |
| Coating | TiCN |
| Usable Length (LU) | 1.535″ |
| End Shape | Spiral Flute |
| Connection Diameter Machine Side (DCONMS) | 0.381″ |
| Cutting Direction (HAND) | Right Hand |
| Applicable Material | Other Non-Metallic Materials |
| Coolant Supply Property (CSP) | External |
