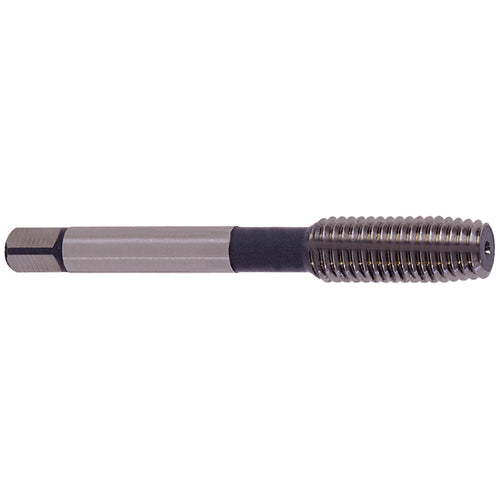

1/4-28 H4 ROLL FORM TAP BOTTOM
Item #: YG44Z6424
Brand: YG-1 Cutting Tools
Model #: Z6424
| Product Specifications | |
|---|---|
| Tool Type | Forming Tap |
| Chamfer | 1.5 - 2P |
| Thread Diameter Size (TDZ) | 1/4″ |
| Length Group | 3D |
| Overall Length (OAL) | 2.5″ |
| Square Size | 0.191″ |
| Thread Cutting Part Length (THL) | 0.86″ |
| Measurement Type | Fractional |
| Usable Length (LU) | 1.86″ |
| End Shape | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.255″ |
| Cutting Edge Material | HSSE-V3 |
| Thread Tolerance Class (TCTR) | H4 |
| Series/List # | Z6 |
| Tapping Prehole Diameter (Pre-hole) | 0.234″ |
| Shank Type | Square |
| Thread Standard | NF |
| Lobe Count | 4 |
| Coating | Bright |
| Thread Size | 1/4″ - 28 |
| Threads per Inch (TPI) | 28 |
