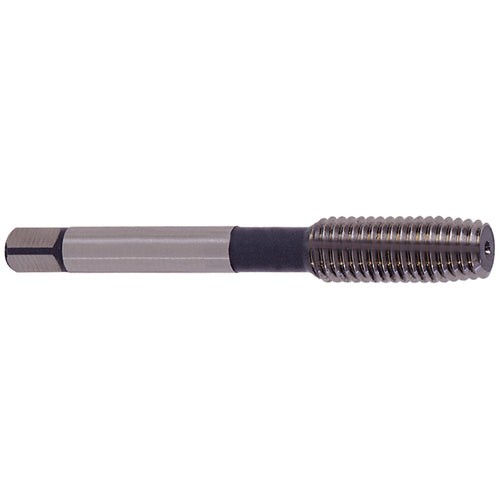

10-24 H6 ROLL FORM TAP BOTTOM
Item #: YG44Z6326
Brand: YG-1 Cutting Tools
Model #: Z6326
| Product Specifications | |
|---|---|
| Tool Type | Forming Tap |
| Chamfer | 1.5 - 2P |
| Thread Diameter Size (TDZ) | #10 |
| Length Group | 3D |
| Overall Length (OAL) | 2.38″ |
| Square Size | 0.152″ |
| Thread Cutting Part Length (THL) | 0.63″ |
| Measurement Type | Wire Gage |
| Usable Length (LU) | 1.51″ |
| End Shape | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.194″ |
| Cutting Edge Material | HSSE-V3 |
| Thread Tolerance Class (TCTR) | H6 |
| Series/List # | Z6 |
| Tapping Prehole Diameter (Pre-hole) | 0.171″ |
| Shank Type | Square |
| Thread Standard | NC |
| Lobe Count | 4 |
| Coating | Bright |
| Thread Size | #10 - 24 |
| Threads per Inch (TPI) | 24 |
