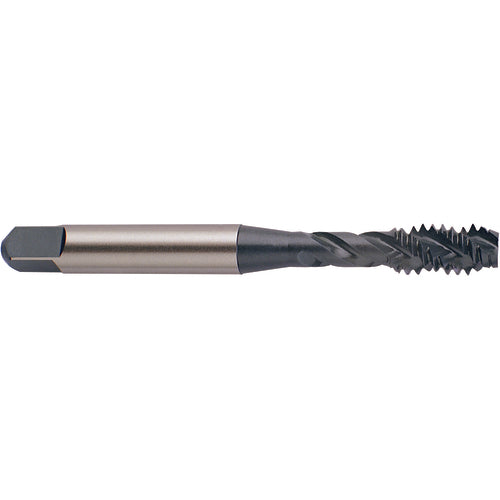

M24X1.5 D6 4F SF BOT-HRD
Item #: YG42BV806
Brand: YG-1 Cutting Tools
Model #: BV806
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M24 |
| Thread Tolerance Class (TCTR) | D6 |
| Thread Pitch (TP) | 1.5 mm |
| Tool Type | Spiral Flute Tap |
| Thread Standard | MF |
| Chamfer | 2P-3P |
| Overall Length (OAL) | 4.91″ |
| Coating | HardSlick |
| Thread Cutting Part Length (THL) | 0.551″ |
| End Shape | Modified Bottoming |
| Usable Length (LU) | 2.815″ |
| Length Group | 2.5D |
| Connection Diameter Machine Side (DCONMS) | 0.76″ |
| Square Size | 0.57″ |
| Flute Count (NOF) | 4 |
| Measurement Type | Inch |
| Flute Helix Angle (FHA) | 45 Degrees |
| Tapping Prehole Diameter (Pre-hole) | 0.891″ |
| Cutting Edge Material | HSSE-V3 |
