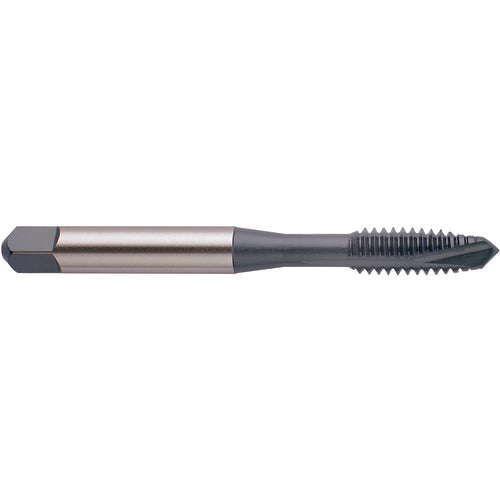

1-3/8-6 H6 4FL SP PL-S/O
Item #: YG41J3906
Brand: YG-1 Cutting Tools
Model #: J3906
| Product Specifications | |
|---|---|
| Thread Standard | UNC |
| Tool Type | Spiral Point Tap |
| Thread Size | 1-3/8″ - 6 |
| Connection Diameter Machine Side (DCONMS) | 1.108″ |
| Thread Diameter Size (TDZ) | 1-3/8″ |
| Thread Cutting Part Length (THL) | 1.791″ |
| Threads per Inch (TPI) | 6 |
| Tapping Prehole Diameter (Pre-hole) | 1.223″ |
| Thread Tolerance Class (TCTR) | H6 |
| End Shape | Plug |
| Usable Length (LU) | 3″ |
| Shank Type | Square |
| Overall Length (OAL) | 6.06″ |
| Length Group | 3xD |
| Chamfer | 4P-5P |
| Square Size | 0.831″ |
| Coating | Oxide |
| Measurement Type | Inch |
| Flute Count (NOF) | 4 |
| Series/List # | J3 |
| Cutting Edge Material | HSSE-V3 |
