7/8-9 H4 3FL SP PT PL-S/O
Item #: YG41J3764
Brand: YG-1 Cutting Tools
Model #: J3764
| Product Specifications | |
|---|---|
| Thread Standard | UNF |

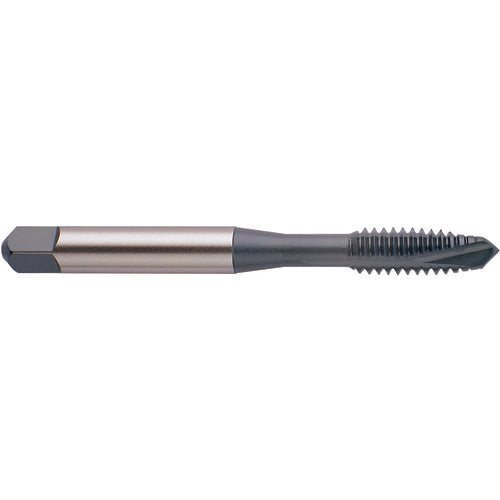

| Tool Type | Spiral Point Tap |
| Thread Size | 7/8″ - 14 |
| Connection Diameter Machine Side (DCONMS) | 0.697″ |
| Thread Diameter Size (TDZ) | 7/8″ |
| Thread Cutting Part Length (THL) | 1.339″ |
| Threads per Inch (TPI) | 14 |
| Tapping Prehole Diameter (Pre-hole) | 0.81″ |
| Thread Tolerance Class (TCTR) | H4 |
| End Shape | Plug |
| Usable Length (LU) | 2.22″ |
| Shank Type | Square |
| Overall Length (OAL) | 4.69″ |
| Length Group | 3xD |
| Chamfer | 4P-5P |
| Square Size | 0.523″ |
| Coating | Oxide |
| Measurement Type | Inch |
| Flute Count (NOF) | 3 |
| Series/List # | J3 |
| Cutting Edge Material | HSSE-V3 |
