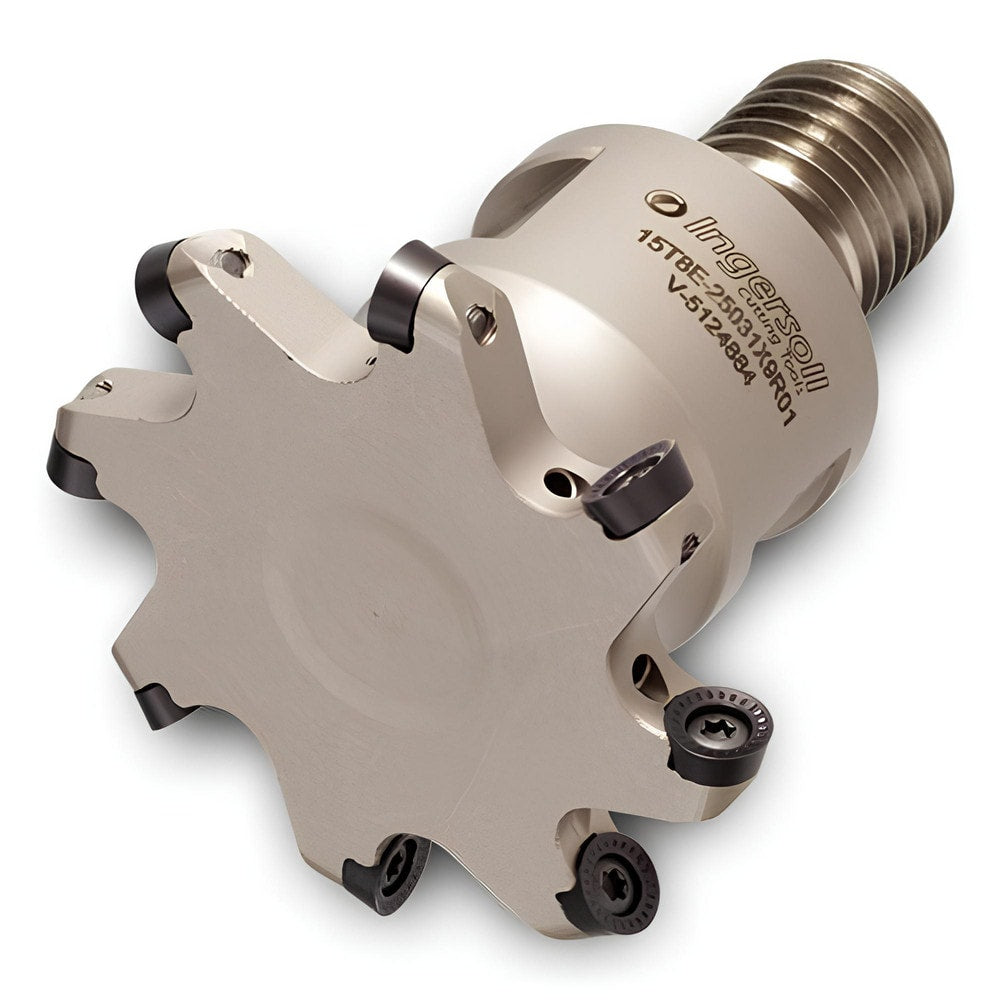

Brand: Ingersoll Cutting Tools / Part #: 2919665
Item #: 01429133
Brand: Ingersoll Cutting Tools
Model #: 2919665
Product Specifications
| Connection Type | Modular Connection |
| Cutting Width (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.7600 |
| Cutter Diameter (Inch) | 3 |
| Shank Diameter (Decimal Inch) | 1.4200 |
| Shank Length (Decimal Inch) | 1.4350 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 9 |
| Compatible Insert Style | RJET; RJLW; RJLT |
| Compatible Insert Size Code | 0803 |
| Staggered Tooth | Yes |
| Tooth Type | Staggered Tooth |
| Rake | Positive |
| Tool Material | Steel |
| Series | 15T8E |
| Toolholder Style | 15T8E |
| Modular Connection Size | M20 |
| Hub Diameter (mm) | 36.070 |
| Tool Application | Contouring; Slotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Maximum Cutting Width (mm) | 8.00 |
| Maximum Body Diameter (Decimal Inch) | 3.0000 |
| Cutter Body Width (mm) | 8.00 |
| Weldon Flat | No |
| Manufacturers Catalog Number | 15T8E-30031X9R01 |
| Overall Length (Decimal Inch) | 1.7500 |
| Insert Inscribed Circle (mm) | 8.00 |
| Number Of Teeth | 9 |
| Coolant Through | Yes |
| Complete Insert Compatibility | RJLW0803; RJxT0803.. |
| Coating/Finish | Coated |
