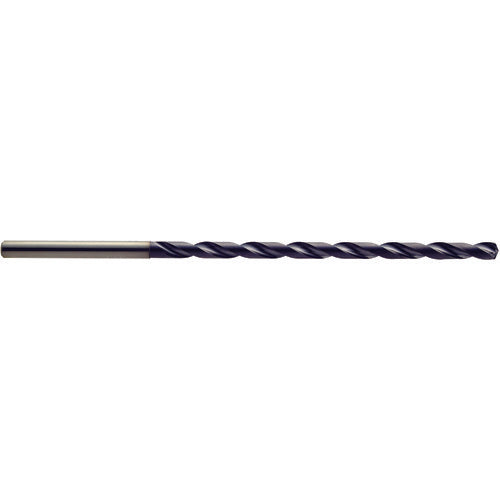

10 mm Dia. × 10 mm Shank × 132 mm Flute Length × 176 mm OAL, 10xD, 140°, TiAlN, 2 Flute, Coolant Thru, Solid Carbide Drill
Item #: YG14DHM10100
Brand: YG-1 Cutting Tools
Model #: DHM10100
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 10 mm |
| Flute Helix Angle (FHA) | 30 Degrees |
| Decimal Equivalent | 0.3937″ |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 10 mm |
| Tool Type | CARBIDE DREAM DRILLS MQL TYPE W/ COOLANT HOLES (10XD) |
| Length Group | 10xD |
| Measurement Type | Metric |
| Coating | TiAlN |
| Series/List # | DHM10 |
| Application | Steel |
| Length Chip Flute (LCF) | 132 mm |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Overall Length (OAL) | 176 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Flute Count (NOF) | 2 |
| Point Angle (SIG) | 140 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Point Length (PL) | 1.82 mm |
