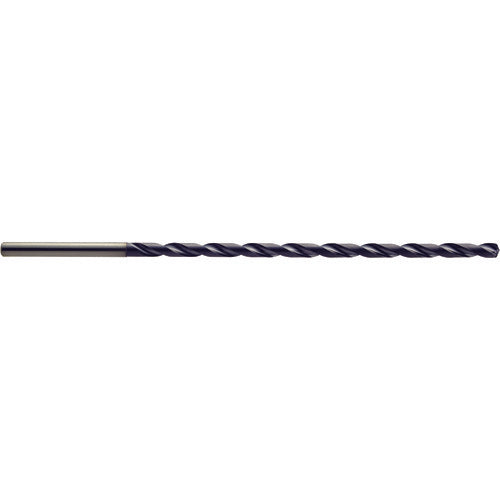

8.1 mm Dia. × 9 mm Shank × 153 mm Flute Length × 211 mm OAL, 15xD, 140°, TiAlN, 2 Flute, Coolant Thru, Solid Carbide Drill
Item #: YG14DH515081
Brand: YG-1 Cutting Tools
Model #: DH515081
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 8.1 mm |
| Flute Helix Angle (FHA) | 30 Degrees |
| Decimal Equivalent | 0.3189″ |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 8.1 mm |
| Tool Type | CARBIDE DRILL MQL TYPE W/ COOLANT (15XD) |
| Length Group | 15xD |
| Measurement Type | Metric |
| Coating | TiAlN |
| Series/List # | DH515 |
| Application | Steel |
| Length Chip Flute (LCF) | 153 mm |
| Connection Diameter Machine Side (DCONMS) | 9 mm |
| Overall Length (OAL) | 211 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Flute Count (NOF) | 2 |
| Point Angle (SIG) | 140 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Point Length (PL) | 1.47 mm |
