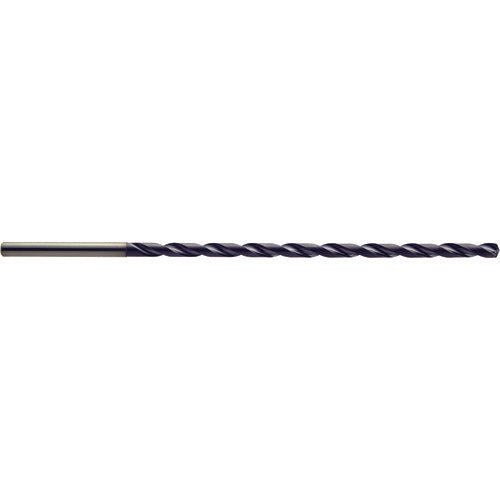

1/4″ Dia. × 7 mm Shank × 117 mm Flute Length × 173 mm OAL, 15xD, 140°, TiAlN, 2 Flute, Coolant Thru, Solid Carbide Drill
Item #: YG14DH515016F
Brand: YG-1 Cutting Tools
Model #: DH515016F
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 1/4″ |
| Flute Helix Angle (FHA) | 30 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 1/4″ |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.25″ |
| Tool Type | CARBIDE DRILL MQL TYPE W/ COOLANT (15XD) |
| Length Group | 15xD |
| Measurement Type | Inch |
| Coating | TiAlN |
| Series/List # | DH515 |
| Application | Steel |
| Length Chip Flute (LCF) | 117 mm |
| Connection Diameter Machine Side (DCONMS) | 7 mm |
| Overall Length (OAL) | 173 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Flute Count (NOF) | 2 |
| Point Angle (SIG) | 140 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Point Length (PL) | 0.0455″ |
