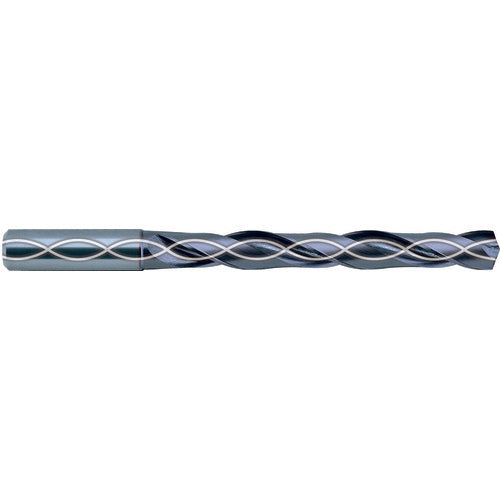

18.2 mm Dia. × 20 mm Shank × 101 mm Flute Length × 153 mm OAL, 5xD, 140°, TiAlN, 2 Flute, External Coolant, Straight Solid Carbide Drill
Item #: YG14DH424182
Brand: YG-1 Cutting Tools
Model #: DH424182
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 18.2 mm |
| Shank Type | Cylindrical |
| Decimal Equivalent | 0.7165″ |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 18.2 mm |
| Tool Type | Carbide Dream Drill - 5xD |
| Length Group | 5xD |
| Measurement Type | Metric |
| Coating | TiAlN |
| Series/List # | DH424 |
| Applicable Material | Steel |
| Usable Length (LU) | 101 mm |
| Connection Diameter Machine Side (DCONMS) | 20 mm |
| Length Chip Flute (LCF) | 101 mm |
| Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 153 mm |
| Point Angle (SIG) | 140 Degrees |
| Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 30 Degrees |
