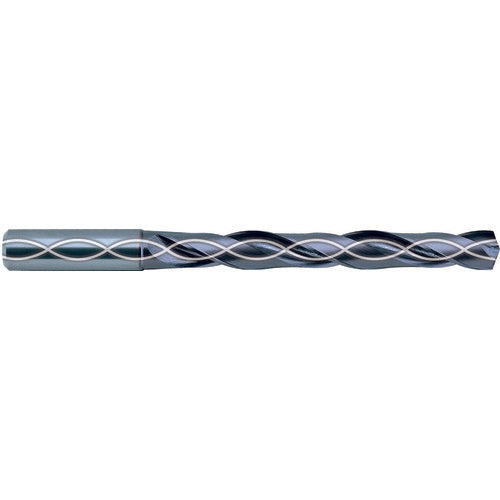

15.4 mm Dia. × 16 mm Shank × 133 mm Flute Length × 83 mm OAL, 5xD, 140°, TiAlN, 2 Flute, Coolant Thru, Straight Solid Carbide Drill
Item #: YG14DH408154
Brand: YG-1 Cutting Tools
Model #: DH408154
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 15.4 mm |
| Shank Type | Cylindrical |
| Decimal Equivalent | 0.6063″ |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 15.4 mm |
| Tool Type | Carbide Dream Drill w/Coolant - 5xD |
| Length Group | 5xD |
| Measurement Type | Metric |
| Coating | TiAlN |
| Series/List # | DH408 |
| Applicable Material | Steel |
| Usable Length (LU) | 133 mm |
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| Length Chip Flute (LCF) | 133 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 83 mm |
| Point Angle (SIG) | 140 Degrees |
| Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 30 Degrees |
