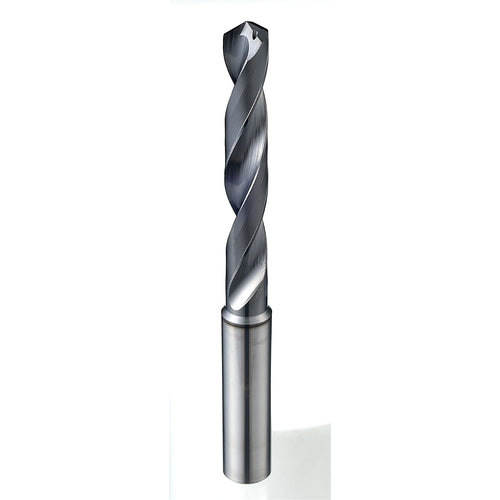

12.4 mm Dia. × 14 mm Shank × 77 mm Flute Length × 124 mm OAL, 5xD, 118°, DLC, 2 Flute, Coolant Thru, Straight Solid Carbide Drill
Item #: YG14DGE433124
Brand: YG-1 Cutting Tools
Model #: DGE433124
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 12.4 mm |
| Shank Type | Cylindrical |
| Decimal Equivalent | 0.4882″ |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 12.4 mm |
| Tool Type | Carbide Dream Drill For Aluminum W/ Coolant (5xD) |
| Length Group | 5xD |
| Measurement Type | Metric |
| Coating | DLC |
| Series/List # | DGE433 |
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Usable Length (LU) | 77 mm |
| Connection Diameter Machine Side (DCONMS) | 14 mm |
| Length Chip Flute (LCF) | 77 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 124 mm |
| Point Angle (SIG) | 118 Degrees |
| Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 30 Degrees |
