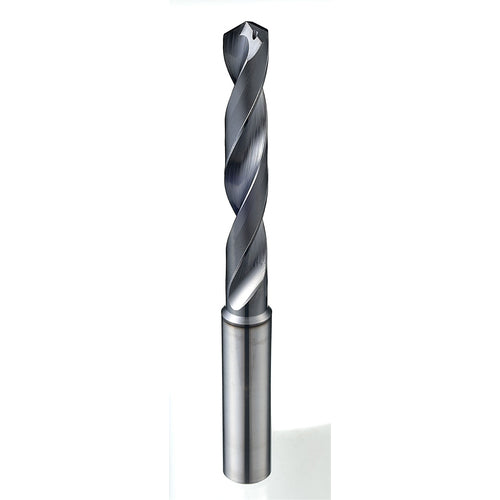

U Dia. x 10 mm Shank × 61 mm Flute Length × 103 mm OAL, 5xD, 118°, DLC, 2 Flute, Coolant Thru, Straight Solid Carbide Drill
Item #: YG14DGE433021L
Brand: YG-1 Cutting Tools
Model #: DGE433021L
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | U |
| Shank Type | Cylindrical |
| Decimal Equivalent | 0.368″ |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | U |
| Tool Type | Carbide Dream Drill For Aluminum W/ Coolant (5xD) |
| Length Group | 5xD |
| Measurement Type | Letter |
| Coating | DLC |
| Series/List # | DGE433 |
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Usable Length (LU) | 61 mm |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Length Chip Flute (LCF) | 61 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 103 mm |
| Point Angle (SIG) | 118 Degrees |
| Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 30 Degrees |
