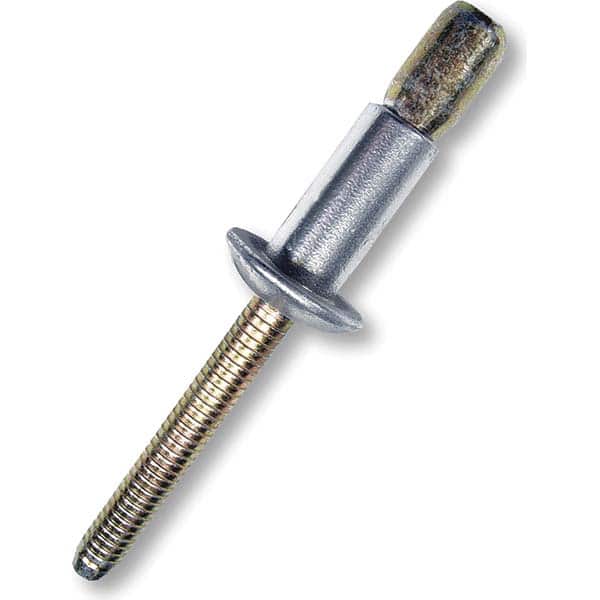

Marson - Blind Rivets Type: Structural Head Type: Protruding
Item #: 38194122
Brand: Marson
Model #: M50829
Features and Benefits
Structural rivets are used in structural, limited-clearance applications. They have high strength properties and good resistance to corrosion and tampering.
Protruding heads slightly extend out of the workpiece material.
Aluminum has a high strength-to-weight ratio and is wear resistant, nonmagnetic and conductive. It is easier to form and machine than steel and is naturally noncorrosive.
Aluminum has a high strength-to-weight ratio and is wear resistant, nonmagnetic and conductive. It is easier to form and machine than steel and is naturally noncorrosive.
Product Specifications
Blind Rivets; Type: Structural ; Head Type: Protruding ; Size Code: 6-6 ; Rivet Material: Aluminum ; Mandrel Material: Aluminum ; Minimum Grip (Decimal Inch): 0.2510
| Type | Structural |
| Head Type | Protruding |
| Size Code | 6-6 |
| Rivet Material | Aluminum |
| Mandrel Material | Aluminum |
| Minimum Grip (Decimal Inch) | 0.2510 |
| Maximum Grip (Decimal Inch) | 0.3750 |
| Head Diameter (Decimal Inch) | 0.3850 |
| Minimum Hole Diameter (Decimal Inch) | 0.1910 |
| Maximum Hole Diameter (Decimal Inch) | 0.2010 |
| Rivet Material Grade | 1100 |
| Mandrel Material Grade | 5056 |
| Body Diameter (Inch) | 0.1875 |
| Shear Strength (Lb.) | 700 |
| Tensile Strength (Lb.) | 580 |
| Head Height (Decimal Inch) | 0.0850 |
