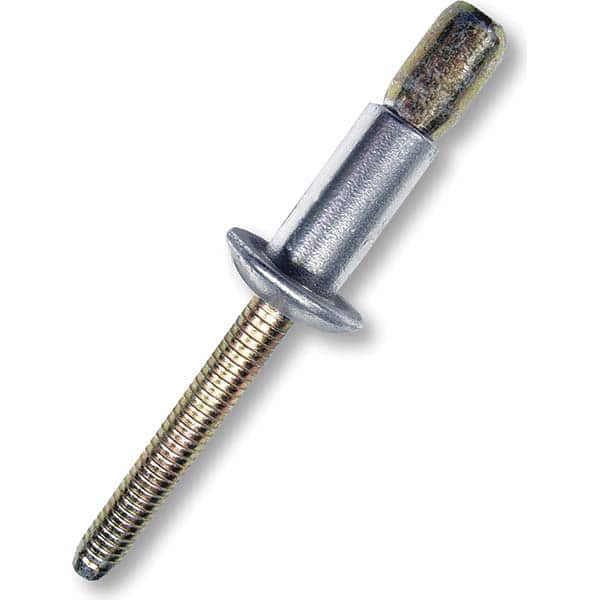

Marson - Blind Rivets Type: Multi Grip Head Type: Button
Item #: 10333383
Brand: Marson
Model #: M56347
Features and Benefits
Multi grip rivets have a wide grip range to ensure the hole is completely filled. They are ideal for oversized, misaligned or oddly shaped holes.
Button head fasteners have cylindrical heads with curved tops and flat bearing surfaces. They slightly protrude out of the workpiece and are used for aesthetic purposes.
Aluminum has a high strength-to-weight ratio and is wear resistant, nonmagnetic and conductive. It is easier to form and machine than steel and is naturally noncorrosive.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
Product Specifications
Blind Rivets; Type: Multi Grip ; Head Type: Button ; Size Code: 62-64 ; Rivet Material: Aluminum ; Mandrel Material: Steel ; Minimum Grip (Decimal Inch): 0.0620
| Type | Multi Grip |
| Head Type | Button |
| Size Code | 62-64 |
| Rivet Material | Aluminum |
| Mandrel Material | Steel |
| Minimum Grip (Decimal Inch) | 0.0620 |
| Maximum Grip (Decimal Inch) | 0.2500 |
| Head Diameter (Inch) | 0.375 |
| Minimum Hole Diameter (Decimal Inch) | 0.1920 |
| Maximum Hole Diameter (Decimal Inch) | 0.1960 |
| Maximum Hole Diameter (mm) | 0.196 |
| Rivet Material Grade | 5052 |
| Drill Size (Wire) | #11 |
| Body Diameter (Decimal Inch) | 0.1875 |
| Shear Strength (Lb.) | 350 |
| Tensile Strength (Lb.) | 530 |
| Fastener Standard | IFI Grade 19 |
