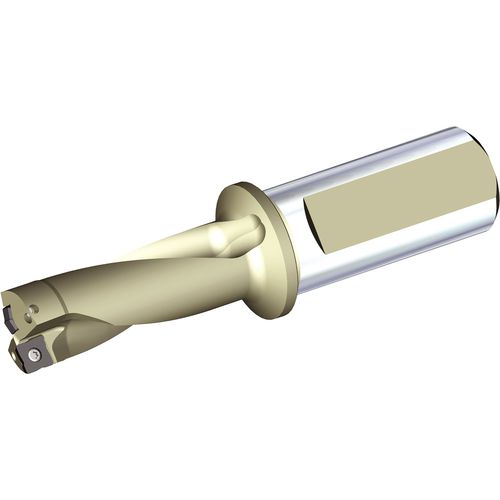

TCF0703R2SSF075B 4 DIA .703IN 2XD
Item #: WK535578301
Brand: Widia
Model #: 5578301
| Product Specifications | |
|---|---|
| Usable Length (LU) | 1.431″ |
| Cutting Item Count (CICT) | 2 |
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Cutting Diameter Minimum (DCN) | 45/64″ |
| Shank Type | Round |
| Cutting Diameter Maximum (DCX) | 0.723″ |
| Protruding Length (LPR) | 2.362″ |
| Point Length (PL) | 0.025″ |
| Shank Length (LS) | 1.969″ |
| Measurement Type | Inch |
| Functional Length (LF) | 2.337″ |
| Length Group | 2D |
| Overall Length (OAL) | 4.331″ |
| Helix Angle | 20Degrees |
| Coolant Supply Property (CSP) | Coolant Thru |
| Body Material | Steel |
| Cutting Direction (HAND) | Right Hand |
| Body Diameter | 1.165″ |
