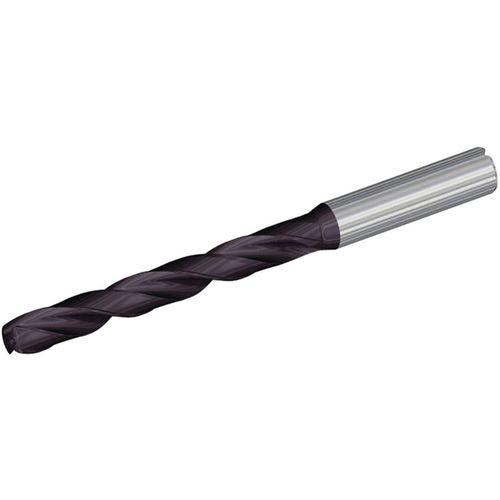

9.5 mm Dia. × 10 mm Shank × 140 mm Flute Length × 185 mm OAL, 132°, TiAlN, Coolant Thru, Round Solid Carbide Drill
Item #: WK534173505
Brand: Widia
Model #: 4173505
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 9.5 mm |
| Shank Type | Round |
| Decimal Equivalent | 0.374″ |
| Shape | Center Cut |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 9.5 mm |
| Cutting Edge Material | Carbide |
| Length Group | 12xD |
| Tool Type | Center Cut |
| Coating | TiAlN |
| Flute Type | Spiral |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium |
| Grade | WU20PD |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Measurement Type | Metric |
| Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 119 mm |
| Point Angle (SIG) | 132 Degrees |
| Length Chip Flute (LCF) | 140 mm |
| Flute Helix Angle (FHA) | 28.9 Degrees |
| Overall Length (OAL) | 185 mm |
