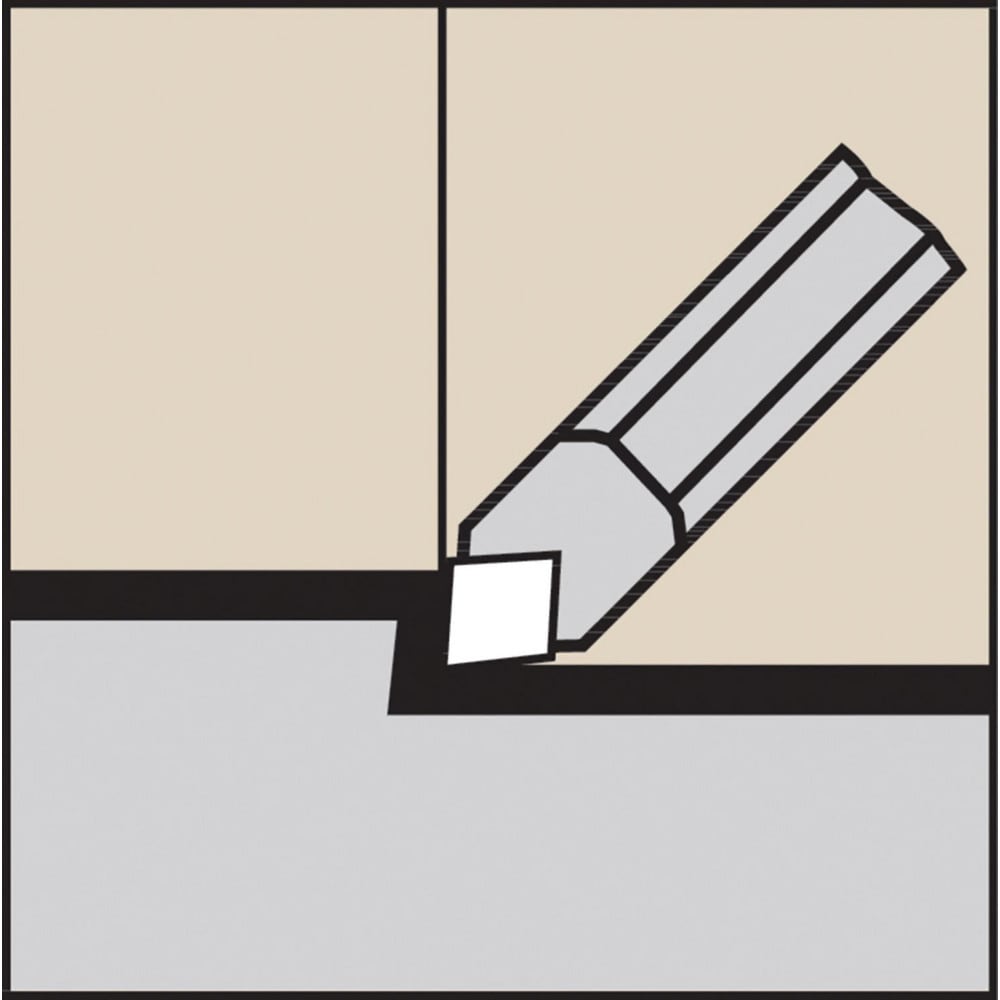

Brand: Widia / Part #: 2012035
Item #: 02773075
Brand: Widia
Model #: 2012035
Product Specifications
| Minimum Bore Diameter (mm) | 10.000 |
| Maximum Bore Depth (mm) | 30.00 |
| Toolholder Style | SCMCN |
| Tool Material | Steel |
| Shank Diameter (mm) | 10.0000 |
| Hand of Holder | Neutral |
| Overall Length (mm) | 40.0000 |
| Compatible Insert Size Code | CC..0602.. |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Diamond |
| Insert Included | No |
| Rake | Positive |
| Cutting Direction | Neutral |
| Rake Angle | 0.000 |
| Lead Angle | 50.000 |
| Series | LR 50? Boring Bar |
| Insert Inscribed Circle (Inch) | 1/4 |
| Compatible Insert Thickness (Decimal Inch) | 0.0938 |
| Compatible Insert Thickness (mm) | 2.38 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Boring |
| Back of Bar to Cutting Edge (mm) | 5.00 |
| Center to Cutting Edge (mm) | 0.00 |
| Primary Workpiece Material | Universal |
| Multi-Use Application | Boring |
| Number of Inserts Used on Toolholder | 1 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Insert Thickness (Inch) | 3/32 |
| Number of Inserts Included in Order | 0 |
| Manufacturers Catalog Number | S10BSCMCN06 |
| Shank Height (Decimal Inch) | 0.3543 |
| Radial Rake | 0 |
| Coolant Through | No |
