Brand: Widia / Part #: 3632133
Item #: 97989529
Brand: Widia
Model #: 3632133
Product Specifications
| Internal or External | External |

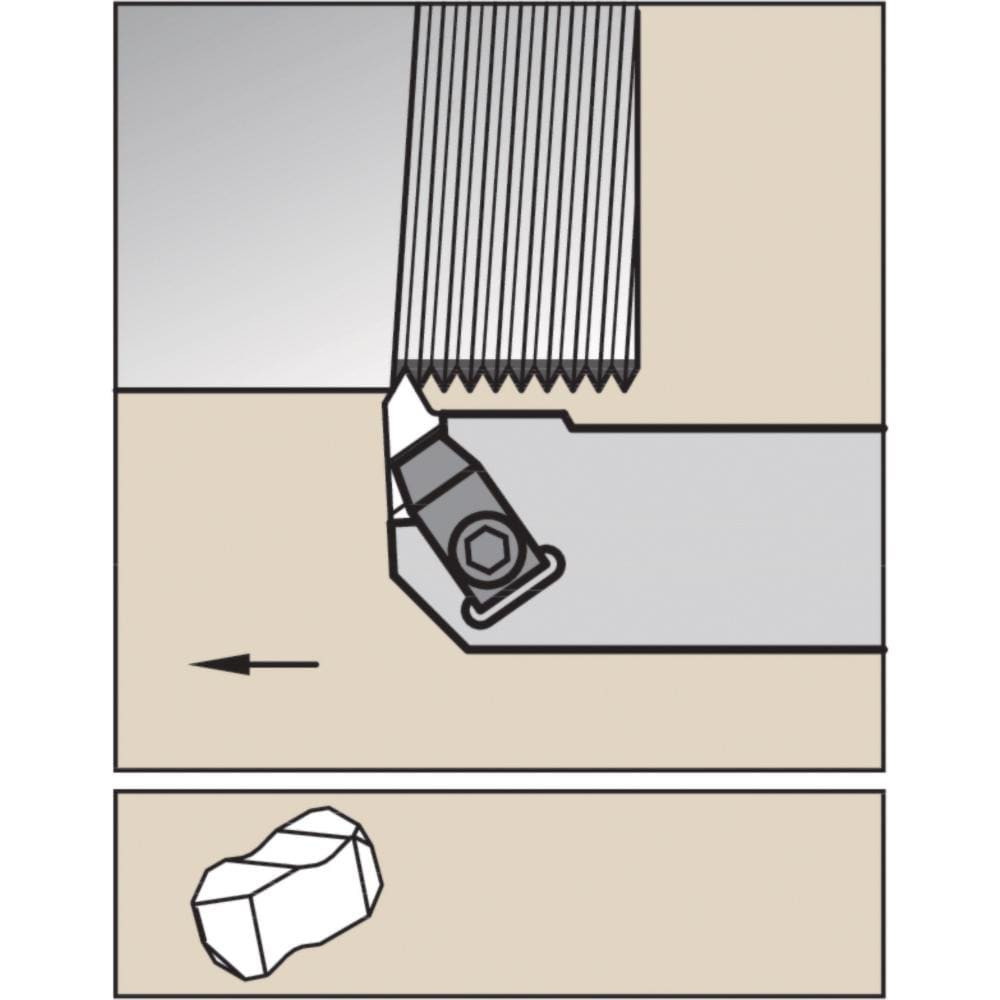

| Toolholder Type | External Grooving |
| Insert Seat Size | 3 |
| Hand of Holder | Right Hand |
| Cutting Direction | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2098 |
| Minimum Groove Width (Decimal Inch) | 0.0390 |
| Toolholder Style | NE |
| Maximum Groove Width (Decimal Inch) | 0.1250 |
| Insert Holding Method | Clamp |
| Insert Compatibility | N.3L |
| Compatible Insert Size Code | 3 |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Shank Height (Decimal Inch) | 3.7500 |
| Series | NE |
| Shank Length (Decimal Inch) | 3.7500 |
| Overall Length (Decimal Inch) | 4.5000 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Threading |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.1250 |
| Head Height (Decimal Inch) | 0.7500 |
| Head Length (Decimal Inch) | 2.0000 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M; N |
| Multi-Use Application | Yes |
| Maximum Bore Depth (Decimal Inch) | 2.0000 |
| Minimum Axial Groove Inside Diameter(mm) | 2.3750 |
| Mount Type | Shank |
| Manufacturers Catalog Number | NER123B |
| Toolholder Material | Steel |
| Insert Hand | Right Hand |
| Complete Insert Compatibility | N.3L |
| Minimum Bore Diameter (Decimal Inch) | 2.3750 |
| Coolant Through | No |
