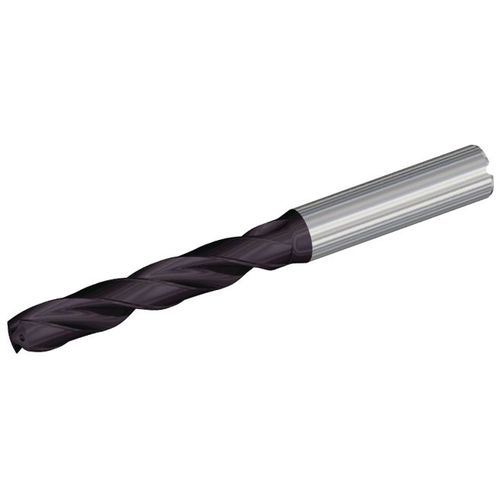

14.5 mm Dia. × 16 mm Shank × 83 mm Flute Length × 133 mm OAL, 140°, TiAlN, Coolant Thru, Round Solid Carbide Drill
Item #: WK532968401
Brand: Widia
Model #: 2968401
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 14.5 mm |
| Shape | Center Cut |
| Decimal Equivalent | 0.5709″ |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 14.5 mm |
| Tool Type | Center Cut |
| Coating | TiAlN |
| Flute Type | Spiral |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Grade | WU25PD |
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| Measurement Type | Metric |
| Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 63 mm |
| Point Angle (SIG) | 140 Degrees |
| Length Chip Flute (LCF) | 83 mm |
| Flute Helix Angle (FHA) | CW |
| Overall Length (OAL) | 133 mm |
| Shank Type | Round |
