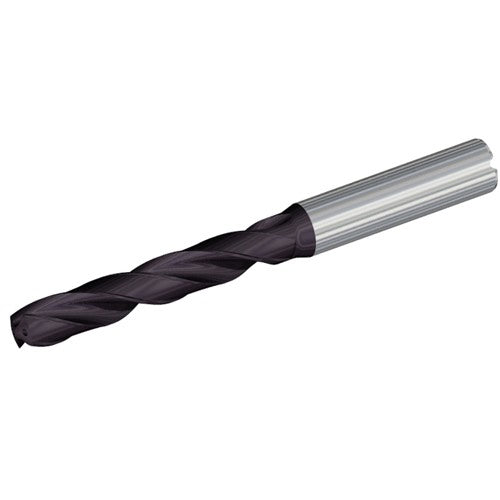

0.563″ Dia. × 0.63″ Shank × 3.27″ Flute Length × 5.24″ OAL, 5xD, TiAlN, 2xD Flute, 2MT Solid Carbide Drill
Item #: WK532968400
Brand: Widia
Model #: 2968400
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 0.563″ |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 9/16″ |
| Tool Type | Taper Shank |
| Decimal Equivalent | 0.563″ |
| Grade | WU25PD |
| Length Group | 5xD |
| Measurement Type | Inch |
| Coating | TiAlN |
| Usable Length (LU) | 2.48″ |
| Connection Diameter Machine Side (DCONMS) | 0.63″ |
| Length Chip Flute (LCF) | 3.27″ |
| Flute Helix Angle (FHA) | CW |
| Overall Length (OAL) | 5.24″ |
| Shank Type | 2MT |
| Flute Count (NOF) | 2 |
