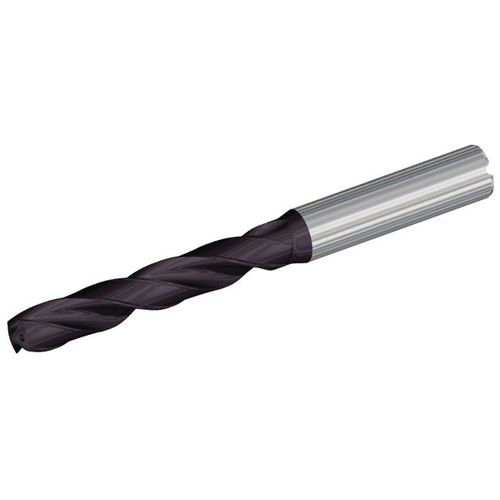

8.8 mm Dia. × 10 mm Shank × 61 mm Flute Length × 103 mm|4.06″ OAL, 140°, TiAlN, Coolant Thru, Round Solid Carbide Drill
Item #: WK532964875
Brand: Widia
Model #: 2964875
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 8.8 mm |
| Shank Type | Round |
| Decimal Equivalent | 0.3465″ |
| Shape | Center Cut |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 8.8 mm |
| Cutting Edge Material | Carbide |
| Length Group | 5xD |
| Tool Type | Center Cut |
| Coating | TiAlN |
| Flute Type | Spiral |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Grade | WU25PD |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Measurement Type | Metric |
| Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 49 mm |
| Point Angle (SIG) | 140 Degrees |
| Length Chip Flute (LCF) | 61 mm |
| Flute Helix Angle (FHA) | CW |
| Overall Length (OAL) | 103 mm |
