Brand: Widia / Part #: 5697915
Item #: 97570998
Brand: Widia
Model #: 5697915
Product Specifications
| Cutting Direction | Left Hand |
| Hand of Holder | Left Hand |
| Compatible Insert Size Code | 1104.. |
| Toolholder Style | DDJNL |
| Rake | Negative |
| Rake Angle | -5 (Axial);-5 (Radial) |
| Multi-use Tool | Yes |
| Lead Angle | 93.000 |
| Insert Holding Method | Clamp |
| Insert Compatibility | DN..1104.. |
| Shank Width (mm) | 20.00 |
| Shank Height (mm) | 20.00 |
| Series | DDJN |
| Overall Length (mm) | 125.0000 |

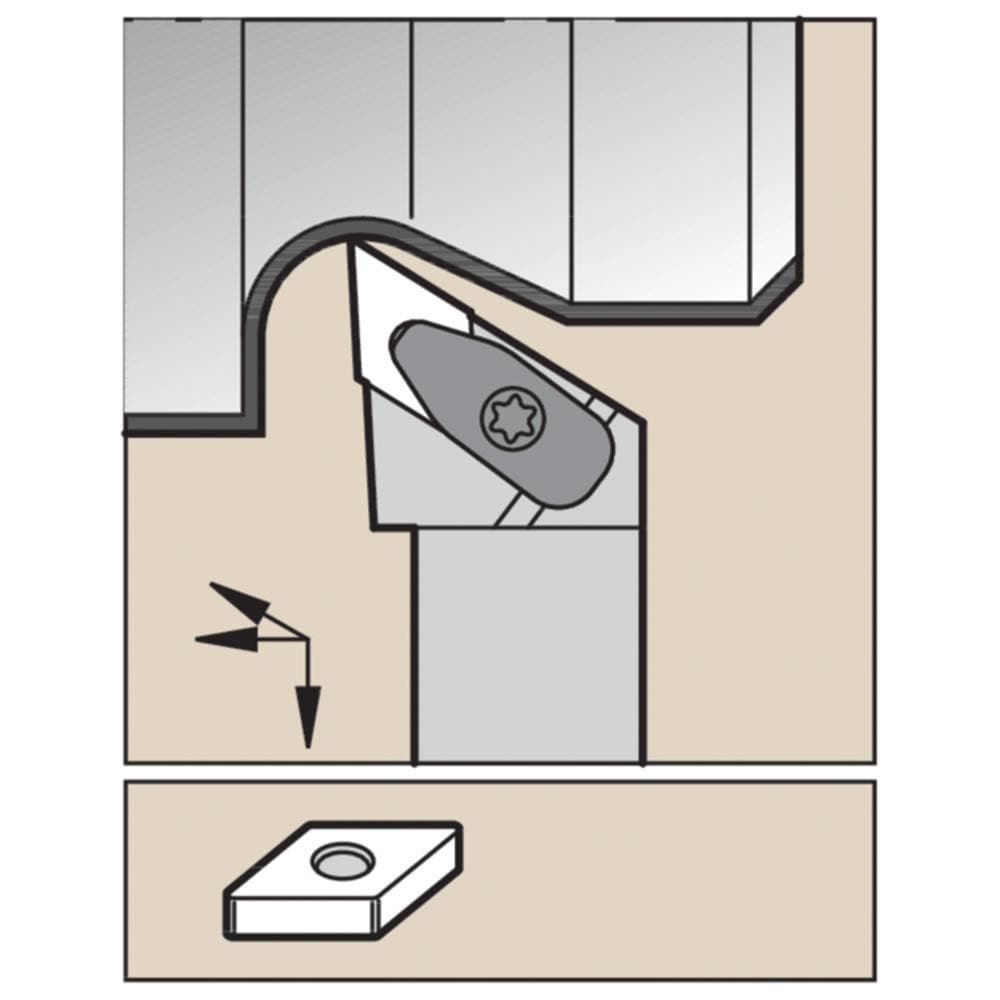

| Cutting Tool Application | Copying; Turning |
| Head Length (mm) | 30.00 |
| Back of Bar to Cutting Edge (mm) | 25.00 |
| Primary Workpiece Material | Universal |
| Insert Width (mm) | 9.53 |
| Toolholder Material | Steel |
| ISO Number | DDJNL2020K11KC04 |
| Complete Insert Compatibility | DN.. |
| Insert Thickness | 4.76 |
| Coolant Through | No |
| Insert Inscribed Circle (mm) | 9.53 |
