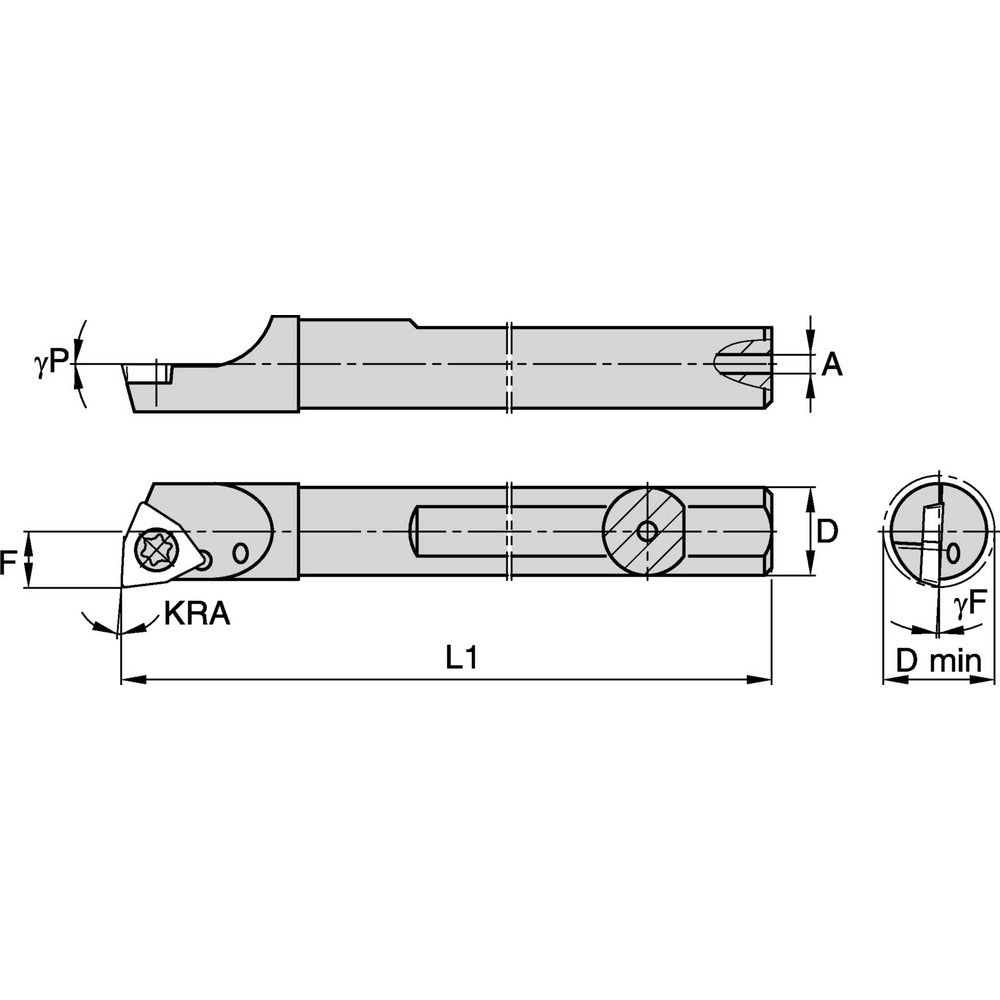

Brand: Widia / Part #: 2823155
Item #: 02773091
Brand: Widia
Model #: 2823155
Product Specifications
| Minimum Bore Diameter (Decimal Inch) | 0.7970 |
| Maximum Bore Depth (Decimal Inch) | 2.2500 |
| Toolholder Style | SSBI |
| Tool Material | Steel |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 3/4 |
| Overall Length (Decimal Inch) | 8.0000 |
| Overall Length (Inch) | 8 |
| Compatible Insert Size Code | WP..321 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Trigon |
| Insert Included | No |
| Rake | Positive |
| Cutting Direction | Right Hand |
| Rake Angle | -3.000 |
| Lead Angle | -3.000 |
| Series | SSBIW |
| Insert Inscribed Circle (Inch) | 3/8 |
| Compatible Insert Thickness (Decimal Inch) | 0.1250 |
| Compatible Insert Thickness (mm) | 3.18 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Boring |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7820 |
| Center to Cutting Edge (Decimal Inch) | 0.4070 |
| Primary Workpiece Material | Universal |
| Multi-Use Application | Boring |
| Number of Inserts Used on Toolholder | 1 |
| Neck Diameter (Decimal Inch) | 0.7600 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Insert Thickness (Inch) | 1/8 |
| Coolant Hole Diameter (Decimal Inch) | 0.1560 |
| Number of Inserts Included in Order | 0 |
| Manufacturers Catalog Number | SSBIW75083R |
| Radial Rake | 0 |
| Coolant Through | Yes |
