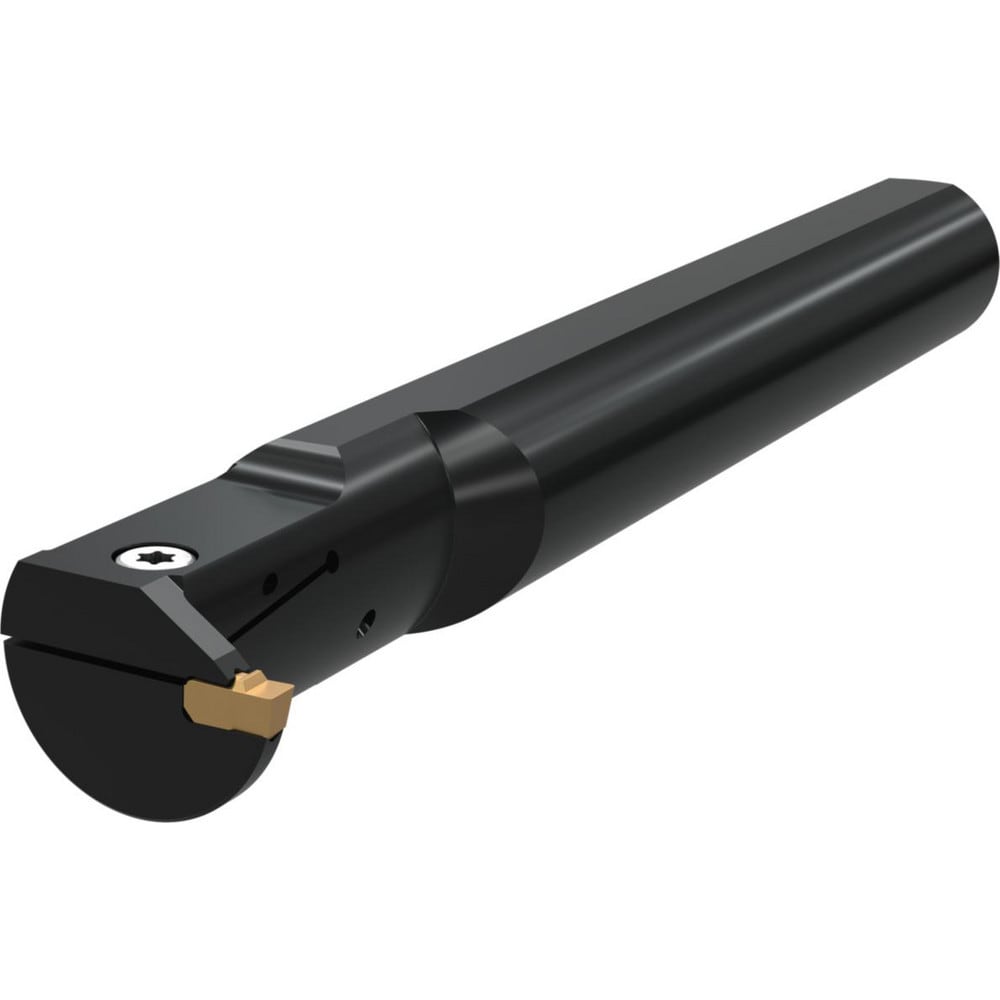

Brand: Widia / Part #: 6948205
Item #: 97973986
Brand: Widia
Model #: 6948205
Product Specifications
| Internal or External | Internal |
| Toolholder Type | Internal Grooving |
| Insert Seat Size | 2 |
| Hand of Holder | Right Hand |
| Cutting Direction | Right Hand |
| Maximum Depth of Cut (mm) | 5.00 |
| Minimum Groove Width (mm) | 2.00 |
| Maximum Groove Width (mm) | 2.00 |
| Toolholder Style | WGCEMR |
| Insert Holding Method | Clamp |
| Insert Compatibility | WG0200M02P02 |
| Compatible Insert Size Code | 2 |
| Shank Width/Diameter (mm) | 12.00 |
| Shank Height (mm) | 107.51 |
| Series | WGC |
| Shank Length (mm) | 107.510 |
| Overall Length (mm) | 125.0000 |
| Multi-use Tool | No |
| Cutting Tool Application | Grooving |
| Back of Bar to Cutting Edge (mm) | 15.00 |
| Center to Cutting Edge (mm) | 9.00 |
| Minimum Hole Diameter (mm) | 16.00 |
| Head Length (mm) | 24.00 |
| Primary Workpiece Material | Universal |
| Vibration Dampening | No |
| Coolant Hole Diameter (mm) | 4.00 |
| Coolant Hole Thread Size | 1/16-27 NPT |
| Mount Type | Shank |
| Manufacturers Catalog Number | A12KWGCEMR0205M |
| Toolholder Material | Steel |
| Insert Hand | Neutral |
| Complete Insert Compatibility | WG0200M02P02 |
| Coolant Through | Yes |
| Minimum Bore Diameter (mm) | 16.000 |
| Maximum Bore Depth (mm) | 24.00 |
