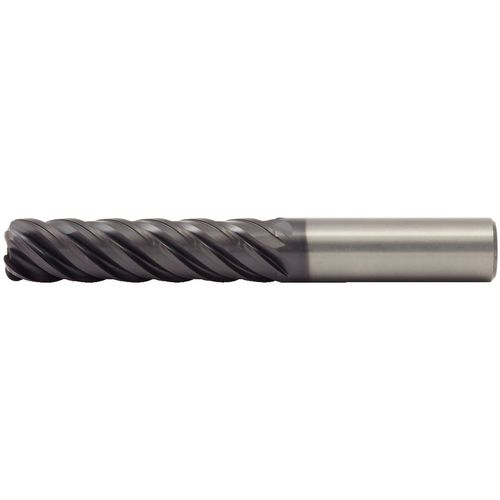

5/16X5/16X1-1/4X3 .015 CARB EM
Item #: WK405095341
Brand: Widia
Model #: 5095341
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/16″ |
| End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 5/16″ |
| Usable Length (LU) | 1-1/4″ |
| Depth of Cut Maximum (APMX) | 1-1/4″ |
| Applicable Material | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium |
| Overall Length (OAL) | 3″ |
| Corner Radius (RE) | 0.015″ |
| Cutting Edge Material | Carbide |
| Tool Type | Non-Center Cutting|Single-End |
| Coating | AlTiN |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 5 |
| Style | 82-02 SEM Side and Center |
| Flute Helix Angle (FHA) | 43 Degrees|CW |
| Decimal Equivalent | 0.3125″ |
| Shank Type | Round |
