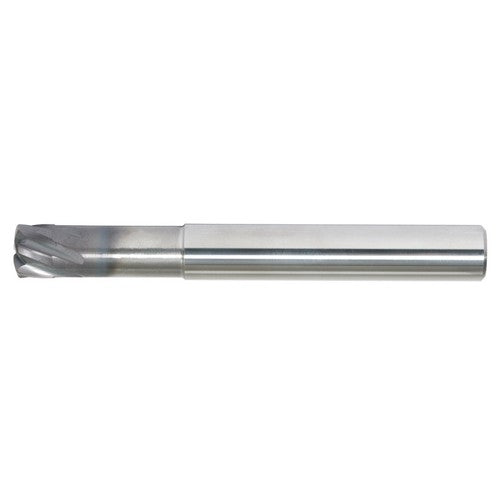

CARBIDE END MILL 6FL 12X12X9-18X83
Item #: WK403745413
Brand: Widia
Model #: 3745413
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 12 mm |
| Flute Helix Angle (FHA) | CW|20 Degrees |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Shank Type | Round |
| Depth of Cut Maximum (APMX) | 0.63 mm |
| End Shape | Corner Radius |
| Overall Length (OAL) | 83 mm |
| Usable Length (LU) | 9-1/2 mm |
| Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.75 mm |
| Coating | AlTiN |
| Grade | ALTIN-MT |
| Flute Count (NOF) | 6 |
| Decimal Equivalent | 0.4724″ |
