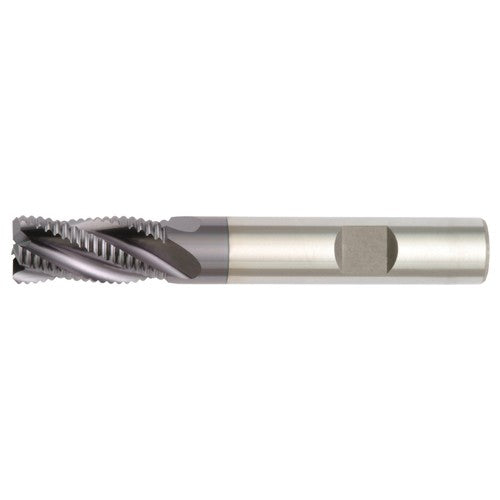

M42 RUF 4FL 7/32X3/8X5/8X2.7/16
Item #: WK402862726
Brand: Widia
Model #: 2862726
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 7/32″ |
| Shank Type | Weldon |
| Connection Diameter Machine Side (DCONMS) | 3/8″ |
| End Shape | Chamfer |
| Depth of Cut Maximum (APMX) | 5/8″ |
| Usable Length (LU) | 5/8″ |
| Overall Length (OAL) | 2-7/16″ |
| Corner Chamfer Width (CHW) | 0.01″ |
| Cutting Edge Material | HSSCo |
| Flute Type | Coarse |
| Coating | Uncoated |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 |
| Style | 82-02 SEM Side and Center |
| Flute Helix Angle (FHA) | CW|30 Degrees |
| Decimal Equivalent | 0.21875″ |
