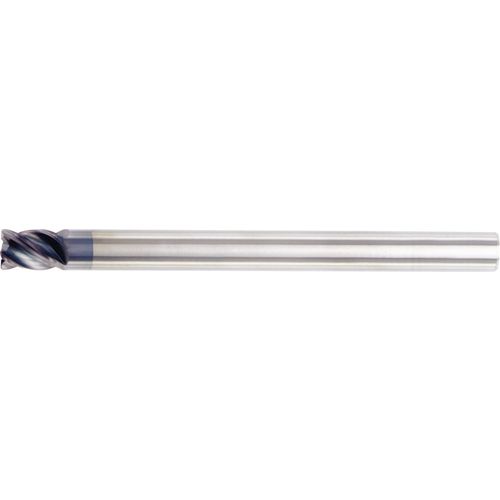

5/8X5/8X3/4X5 SC FIN 4FL CARB EM
Item #: WK402836992
Brand: Widia
Model #: 2836992
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/8″ |
| End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 5/8″ |
| Usable Length (LU) | 3/4″ |
| Depth of Cut Maximum (APMX) | 3/4″ |
| Applicable Material | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Overall Length (OAL) | 5″ |
| Corner Chamfer Width (CHW) | 0.02″ |
| Cutting Edge Material | Carbide |
| Grade | TIALN-LT |
| Coating | AlTiN |
| Tool Type | Non-Center Cutting|Single-End |
| Flute Count (NOF) | 4 |
| Coolant Supply Property (CSP) | Coolant Thru |
| Flute Helix Angle (FHA) | 38 Degrees|CW |
| Style | 82-01 SEM Side Cutting |
| Shank Type | Round |
| Decimal Equivalent | 0.625″ |
