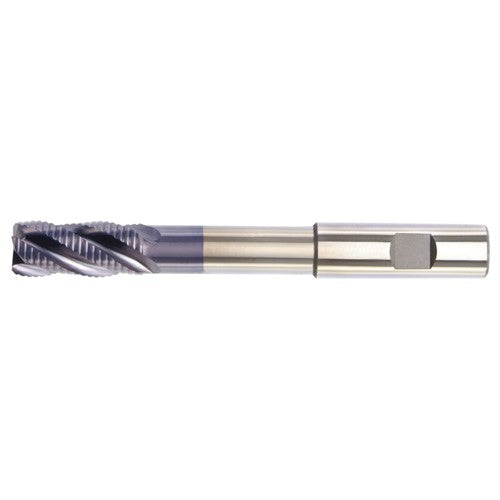

TF6TNR19017 PM RUF 4FL 3/4X3/4X1.5/8X6X8.1/4
Item #: WK402836075
Brand: Widia
Model #: 2836075
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/4″ |
| Neck Diameter (DN) | 0.705″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Head Length (LH) | 6″ |
| Depth of Cut Maximum (APMX) | 1-5/8″ |
| Flute Type | Flat Shallow |
| Overall Length (OAL) | 8-1/4″ |
| Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSSPM |
| Style | Roughing |
| Coating | AlTiN |
| Decimal Equivalent | 0.75″ |
| Flute Count (NOF) | 4 |
| Measurement Type | Inch |
| Flute Helix Angle (FHA) | 55 Degrees |
| Series/List # | 6TNR |
| Shank Type | Weldon | Cylindrical |
| Shank Length (LS) | 2.18″ |
| End Shape | Chamfer |
| Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 6″ |
| Single / Double End | Single End |
| Corner Chamfer Width (CHW) | 0.047″ |
| Center Cutting | Yes |
