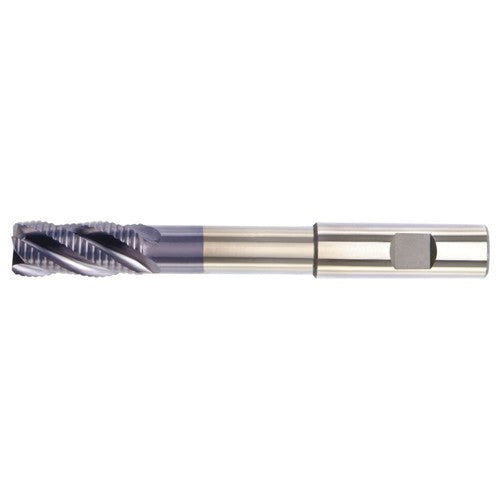

TF6TNR32019 PM RUF 6FL 1.1/4X1.1/4X2X6X8.1/2
Item #: WK402836054
Brand: Widia
Model #: 2836054
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1-1/4″ |
| Neck Diameter (DN) | 1.175″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ |
| Head Length (LH) | 6″ |
| Depth of Cut Maximum (APMX) | 2″ |
| Flute Type | Flat Shallow |
| Overall Length (OAL) | 8-1/2″ |
| Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSSPM |
| Style | Roughing |
| Coating | AlTiN |
| Decimal Equivalent | 1.25″ |
| Flute Count (NOF) | 6 |
| Measurement Type | Inch |
| Flute Helix Angle (FHA) | 55 Degrees |
| Series/List # | 6TNR |
| Shank Type | Weldon | Cylindrical |
| Shank Length (LS) | 2.492″ |
| End Shape | Chamfer |
| Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 6″ |
| Single / Double End | Single End |
| Corner Chamfer Width (CHW) | 0.059″ |
| Center Cutting | Yes |
