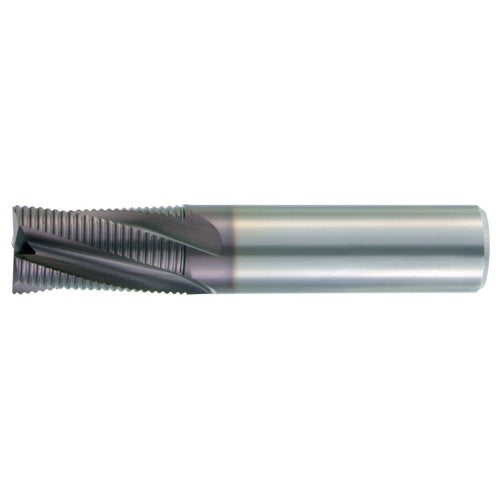

TR4S4R07002 TIALN-RT HANITA
Item #: WK402831385
Brand: Widia
Model #: 2831385
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/4″ |
| End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 1/4″ |
| Usable Length (LU) | 3/8″ |
| Depth of Cut Maximum (APMX) | 3/8″ |
| Corner Chamfer Width (CHW) | 0.012″ |
| Overall Length (OAL) | 2″ |
| Grade | TIALN-RT |
| Cutting Edge Material | Carbide |
| Flute Type | Fine |
| Coating | AlTiN |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 |
| Style | 82-02 SEM Side and Center |
| Flute Helix Angle (FHA) | CW|20 Degrees |
| Decimal Equivalent | 0.25″ |
| Shank Type | Weldon |
