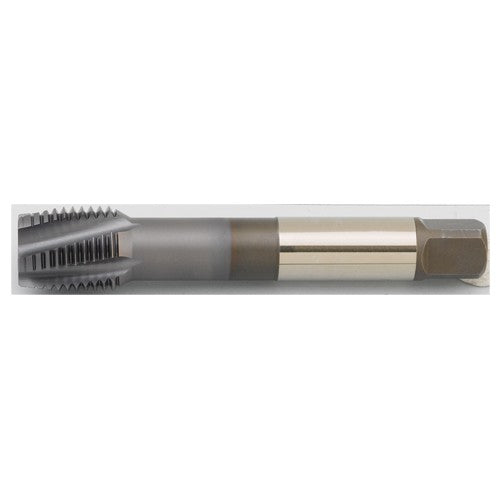

GT315035 M20X2.5 6HX 4F
Item #: WK345143532
Brand: Widia
Model #: 5143532
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M20 |
| Thread Tolerance Class (TCTR) | 6HX |
| Thread Pitch (TP) | 2.5 mm |
| Standard | DIN 376 |
| Thread Standard | Metric |
| Chamfer | 2P-3P |
| Overall Length (OAL) | 140 mm |
| Coating | TiCN |
| Thread Cutting Part Length (THL) | 25 mm |
| Style | Semi-Bottoming |
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Flute Count (NOF) | 4 |
| Measurement Type | Metric |
| Cutting Edge Material | HSSCoPM |
