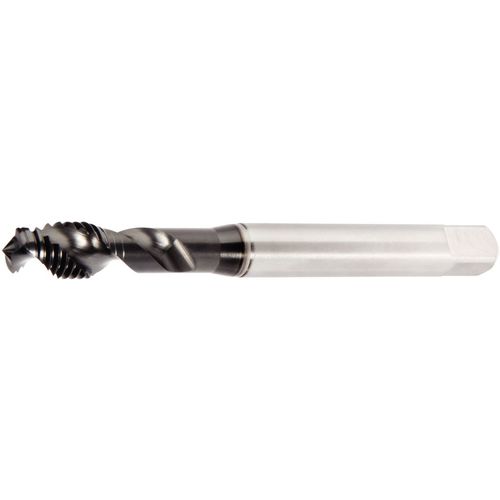

GT805006 M10X1.5 6H RHSF 371 HSS-E
Item #: WK344160059
Brand: Widia
Model #: 4160059
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M10 |
| Thread Tolerance Class (TCTR) | 6H |
| Thread Pitch (TP) | 1.5 mm |
| Standard | DIN371 |
| Thread Standard | Metric |
| Chamfer | 2P-3P |
| Overall Length (OAL) | 100 mm |
| Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 16 mm |
| Style | Semi-Bottoming |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 2 |
| Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 45 Degrees |
| Square Size | 8 mm |
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Measurement Type | Metric |
| Cutting Edge Material | HSSCoPM |
