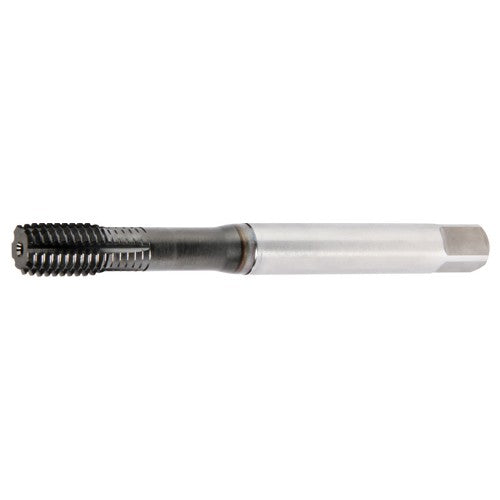

GT235014 M8X1.25 6HX FT SBOT CH371
Item #: WK344159967
Brand: Widia
Model #: 4159967
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M8 |
| Standard | DIN 2174 |
| Thread Pitch (TP) | 1.25 mm |
| Tool Type | Spiral Flute Tap |
| Thread Standard | Metric |
| Chamfer | 2P-3P |
| Overall Length (OAL) | 90 mm |
| Style | Semi-Bottoming |
| Thread Cutting Part Length (THL) | 14 mm |
| Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 35 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 8 mm |
| Square Size | 6.2 mm |
| Applicable Material | Steel |
| Measurement Type | Metric |
| Cutting Edge Material | HSS-E PM |
| Grade | WP31MG |
| Thread Tolerance Class (TCTR) | 6HX |
| Series/List # | GT |
