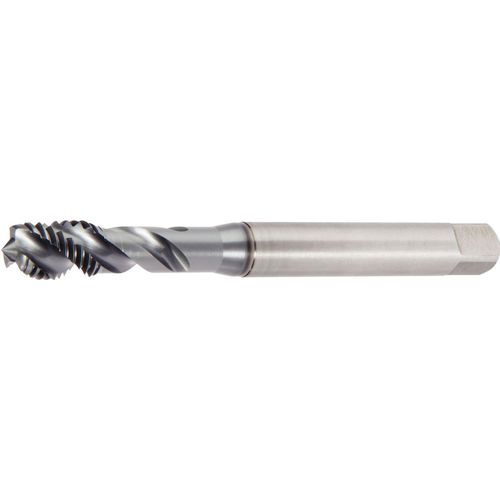

GT045008 M14X2 6H RHSF SBOT 376
Item #: WK344158768
Brand: Widia
Model #: 4158768
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M14 |
| Standard | DIN 376 |
| Thread Pitch (TP) | 2 mm |
| Tool Type | Spiral Flute Tap |
| Thread Standard | Metric |
| Chamfer | 2P-3P |
| Overall Length (OAL) | 110 mm |
| Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 20 mm |
| Style | Semi-Bottoming |
| Connection Diameter Machine Side (DCONMS) | 11 mm |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 |
| Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 41 Degrees |
| Square Size | 9 mm |
| Applicable Material | Steel |
| Measurement Type | Metric |
| Cutting Edge Material | HSS-E PM |
| Grade | WH36MG |
| Thread Tolerance Class (TCTR) | 6H |
| Series/List # | GT |
