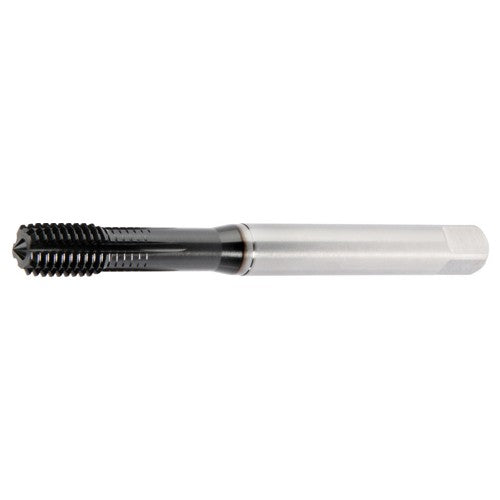

GT225020 M8X1.25 6HX FT SBOT 2174
Item #: WK344158499
Brand: Widia
Model #: 4158499
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M8 |
| Cutting Edge Material | HSSCoPM |
| Thread Pitch (TP) | 1.25 mm |
| Thread Tolerance Class (TCTR) | 6HX |
| Thread Standard | Metric |
| Standard | DIN 2174 |
| Overall Length (OAL) | 90 mm |
| Chamfer | 2P-3P |
| Thread Cutting Part Length (THL) | 14 mm |
| Style | Semi-Bottoming |
| Connection Diameter Machine Side (DCONMS) | 8 mm |
| Coolant Supply Property (CSP) | External |
