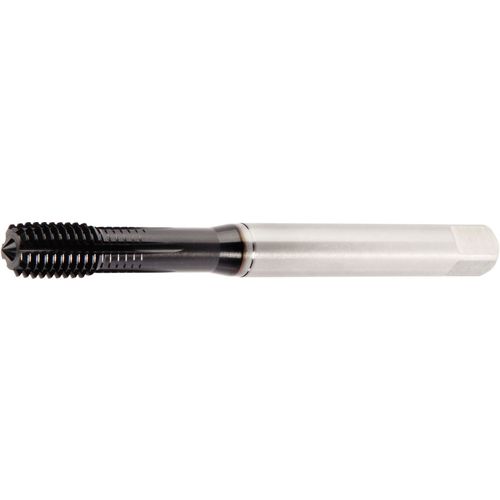

GT225019 M6X1 6HX FT SBOT 2174
Item #: WK344158498
Brand: Widia
Model #: 4158498
| Product Specifications | |
|---|---|
| Tool Type | Forming Tap |
| Coolant Supply Property (CSP) | External |
| Thread Diameter Size (TDZ) | M6 |
| Square Size | 4.9 mm |
| Thread Pitch (TP) | 1 mm |
| Measurement Type | Metric |
| Overall Length (OAL) | 80 mm |
| Style | Semi-Bottoming |
| Thread Cutting Part Length (THL) | 10 mm |
| Cutting Edge Material | HSSE-PM |
| Usable Length (LU) | 30 mm |
| Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Series/List # | GT |
| Thread Tolerance Class (TCTR) | 6HX |
| Shank Type | Round w/ Drive Square |
| Tap Standard | DIN 2174 |
| Grade | WP31MG |
| Thread Standard | Metric |
| Thread Size | M6 × 1 |
| Applicable Material | Steel |
