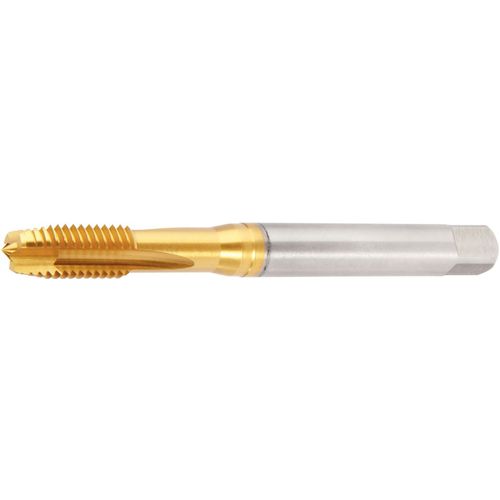

GT005007 M12X1.75 6HX SPPT PL 376
Item #: WK344153755
Brand: Widia
Model #: 4153755
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M12 |
| Tool Type | Spiral Flute Tap |
| Thread Pitch (TP) | 1.75 mm |
| Chamfer | 3P-5P |
| Thread Standard | Metric |
| Flute Type | Spiral |
| Overall Length (OAL) | 110 mm |
| End Shape | Spiral Point |
| Thread Cutting Part Length (THL) | 24 mm |
| Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 9 mm |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 |
| Coolant Supply Property (CSP) | External |
| Applicable Material | Steel | Stainless Steel |
| Square Size | 7 mm |
| Cutting Edge Material | HSS-E PM |
| Measurement Type | Metric |
| Thread Tolerance Class (TCTR) | 6HX |
| Grade | WP31MG |
| Standard | DIN 376 |
| Series/List # | GT |
