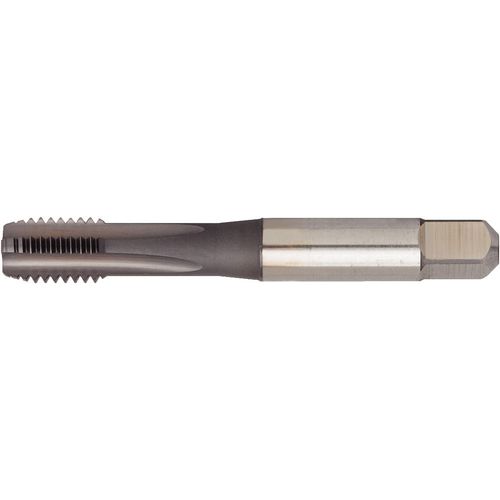

GT405029 3/4-10 3BX STFL SBOTT
Item #: WK344035572
Brand: Widia
Model #: 4035572
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 3/4″ |
| Standard | ANSI |
| Threads per Inch (TPI) | 10 |
| Chamfer | 2P-3P |
| Thread Standard | NC | UNC |
| Flute Type | Straight |
| Overall Length (OAL) | 4-1/4″ |
| Style | Semi-Bottoming |
| Thread Cutting Part Length (THL) | 1″ |
| Shank Type | Round w/ Drive Square |
| Usable Length (LU) | 2.08″ |
| Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 0.59″ |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 |
| Square Size | 0.446″ |
| Flute Helix Angle (FHA) | 0 Degrees |
| Measurement Type | Inch |
| Applicable Material | Cast Iron | Aluminum / Non-Ferrous Materials |
| Grade | WU32MG |
| Cutting Edge Material | HSS-E-PM |
| Series/List # | GT40 |
| Thread Tolerance Class (TCTR) | 3BX |
| Thread Size | 3/4″ - 10 |
