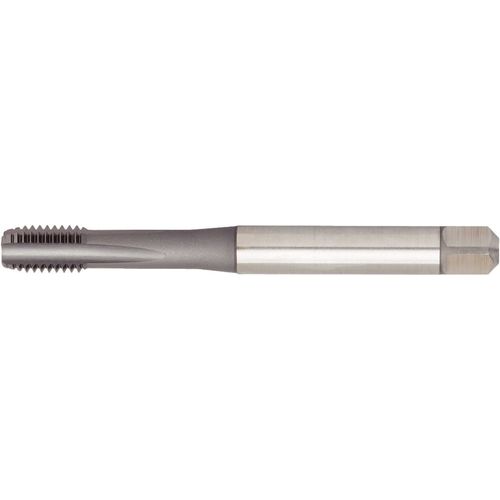

GT405011 M22X2.5 6HX STFL SBOTT
Item #: WK344033759
Brand: Widia
Model #: 4033759
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M22 |
| Standard | DIN376 |
| Thread Pitch (TP) | 2.5 mm |
| Chamfer | 2P-3P |
| Thread Standard | Metric |
| Flute Type | Straight |
| Overall Length (OAL) | 140 mm |
| Style | Semi-Bottoming |
| Thread Cutting Part Length (THL) | 25 mm |
| Shank Type | Round w/ Drive Square |
| Connection Diameter Machine Side (DCONMS) | 18 mm |
| Cutting Direction (HAND) | Neutral |
| Flute Count (NOF) | 4 |
| Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 0 Degrees |
| Square Size | 14.5 mm |
| Cutting Edge Material | HSSCoPM |
| Measurement Type | Metric |
| Thread Tolerance Class (TCTR) | 6HX |
| Thread Size | M22 × 2.5 |
