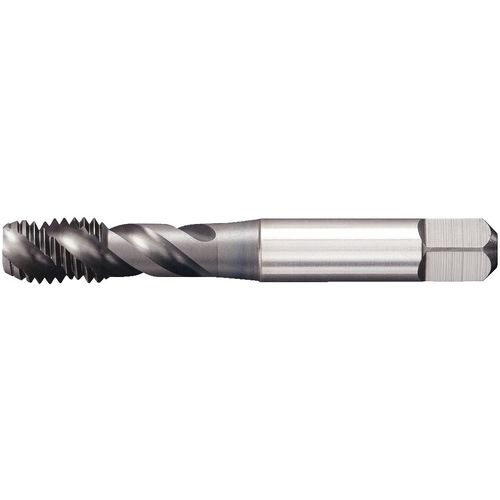

GT305004 6-32 2BX RHSF SBOTT
Item #: WK343955134
Brand: Widia
Model #: 3955134
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | #6 |
| Standard | ANSI |
| Threads per Inch (TPI) | 32 |
| Tool Type | Spiral Flute Tap |
| Thread Standard | NC | UNC |
| Chamfer | 2P-3P |
| Overall Length (OAL) | 1.99″ |
| Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 0.36″ |
| Style | Semi-Bottoming |
| Usable Length (LU) | 0.71″ |
| Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 0.141″ |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 |
| Square Size | 0.108″ |
| Flute Helix Angle (FHA) | 45 Degrees |
| Measurement Type | Inch |
| Applicable Material | Stainless Steel |
| Grade | WS34MG |
| Cutting Edge Material | HSS-E PM |
| Series/List # | GT |
| Thread Tolerance Class (TCTR) | 2BX |
