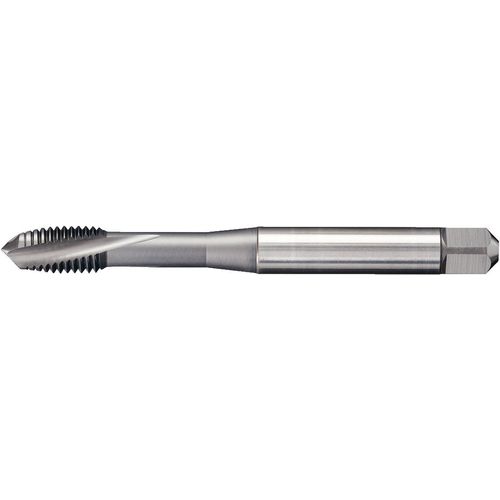

GT205109 M16X1.5 6HX LH SF PLG 374
Item #: WK343955129
Brand: Widia
Model #: 3955129
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M16 |
| Standard | DIN 374 |
| Thread Pitch (TP) | 1.5 mm |
| Tool Type | Spiral Flute Tap |
| Thread Standard | Metric |
| Chamfer | 3P-5P |
| Overall Length (OAL) | 100 mm |
| Coating | TiCN |
| Thread Cutting Part Length (THL) | 15 mm |
| Flute Type | Spiral |
| Usable Length (LU) | 46 mm |
| Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 |
| Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 15 Degrees |
| Square Size | 9 mm |
| Applicable Material | Steel | Super-Alloys / Titanium |
| Measurement Type | Metric |
| Cutting Edge Material | HSS-E PM |
| Grade | WU32MG |
| Thread Tolerance Class (TCTR) | 6HX |
| Series/List # | GT |
