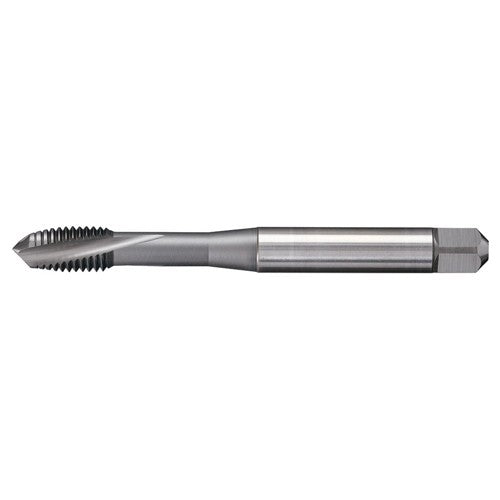

GT205092 M16X1.5 6HX LH SF PLG 374
Item #: WK343955082
Brand: Widia
Model #: 3955082
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M16 |
| Cutting Edge Material | HSSCoPM |
| Thread Pitch (TP) | 1.5 mm |
| Thread Tolerance Class (TCTR) | 6HX |
| Thread Standard | Metric |
| Standard | DIN 374 |
| Overall Length (OAL) | 100 mm |
| Chamfer | 3P-5P |
| Thread Cutting Part Length (THL) | 15 mm |
| Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 |
| Measurement Type | Metric |
