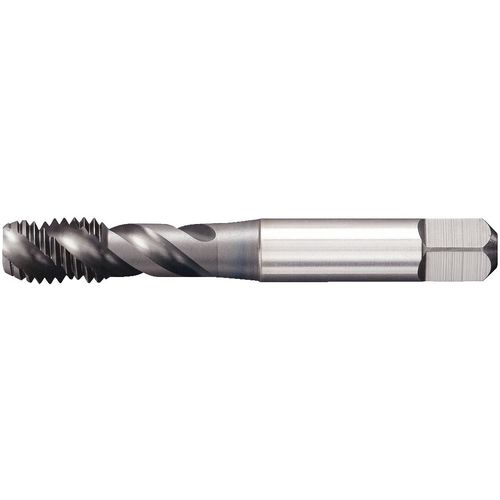

GT305069 M16X2 6HX RHSF SBOTT
Item #: WK343955068
Brand: Widia
Model #: 3955068
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M16 |
| Standard | ANSI |
| Thread Pitch (TP) | 2 mm |
| Tool Type | Spiral Flute Tap |
| Thread Standard | Metric |
| Chamfer | 2P-3P |
| Overall Length (OAL) | 3.81″ |
| Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 0.91″ |
| Style | Semi-Bottoming |
| Usable Length (LU) | 1.89″ |
| Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 0.48″ |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 5 |
| Square Size | 0.357″ |
| Flute Helix Angle (FHA) | 45 Degrees |
| Measurement Type | Inch |
| Applicable Material | Stainless Steel |
| Grade | WS34MG |
| Cutting Edge Material | HSS-E PM |
| Series/List # | GT |
| Thread Tolerance Class (TCTR) | 6HX |
